Reliable Protection for Every Solar Installation
ACDB & DCDB Solutions.
Protect your solar investment with professionally designed ACDB and DCDB solutions from Vidyut Renewables.
Engineered to provide reliable protection between your solar panels, inverter and electrical grid, our distribution boxes are designed for safe power management, surge protection and efficient system isolation.
In-House Manufactured
Class II Surge Protection
IP65 Weatherproof
DISCOM Compliant Documentation
System Flow, Where ACDB & DCDB Fit
Start
Solar Panels
DC Protection
DCDB Box
DC → AC Conversion

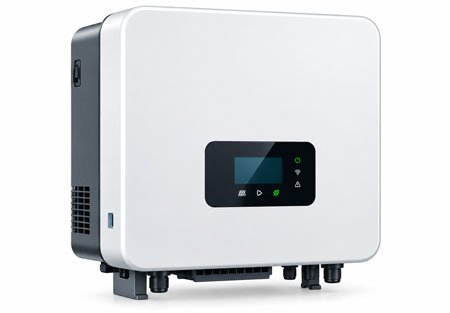

Solar Inverter
AC Protection
ACDB Box
Net Meter Connection
Home
ACDB & DCDB Distribution Boxes

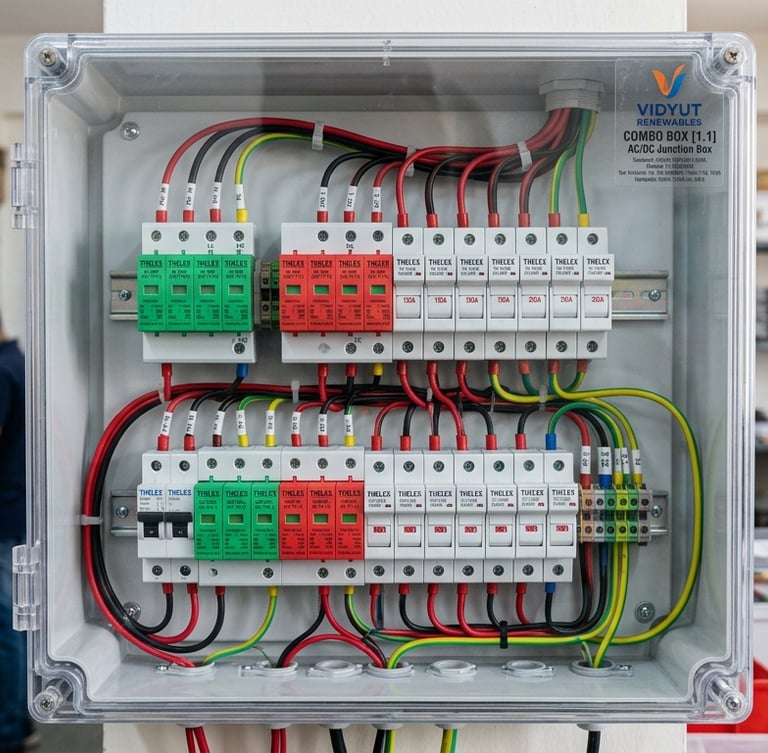

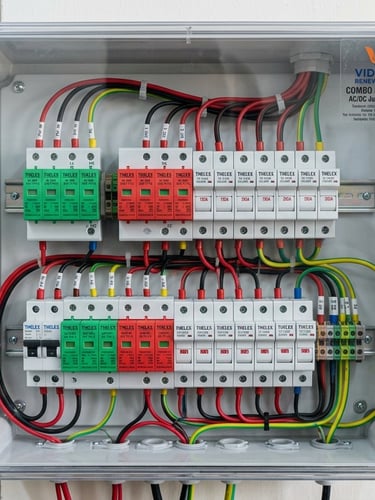

Engineered in-house by Vidyut Renewables, our DCDB and ACDB boxes provide dedicated protection across both sides of every solar system
AC Side Protection

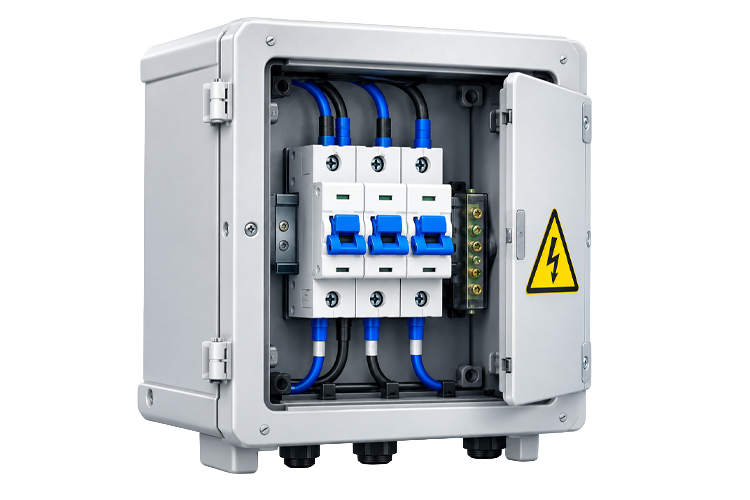

ACDB BOX

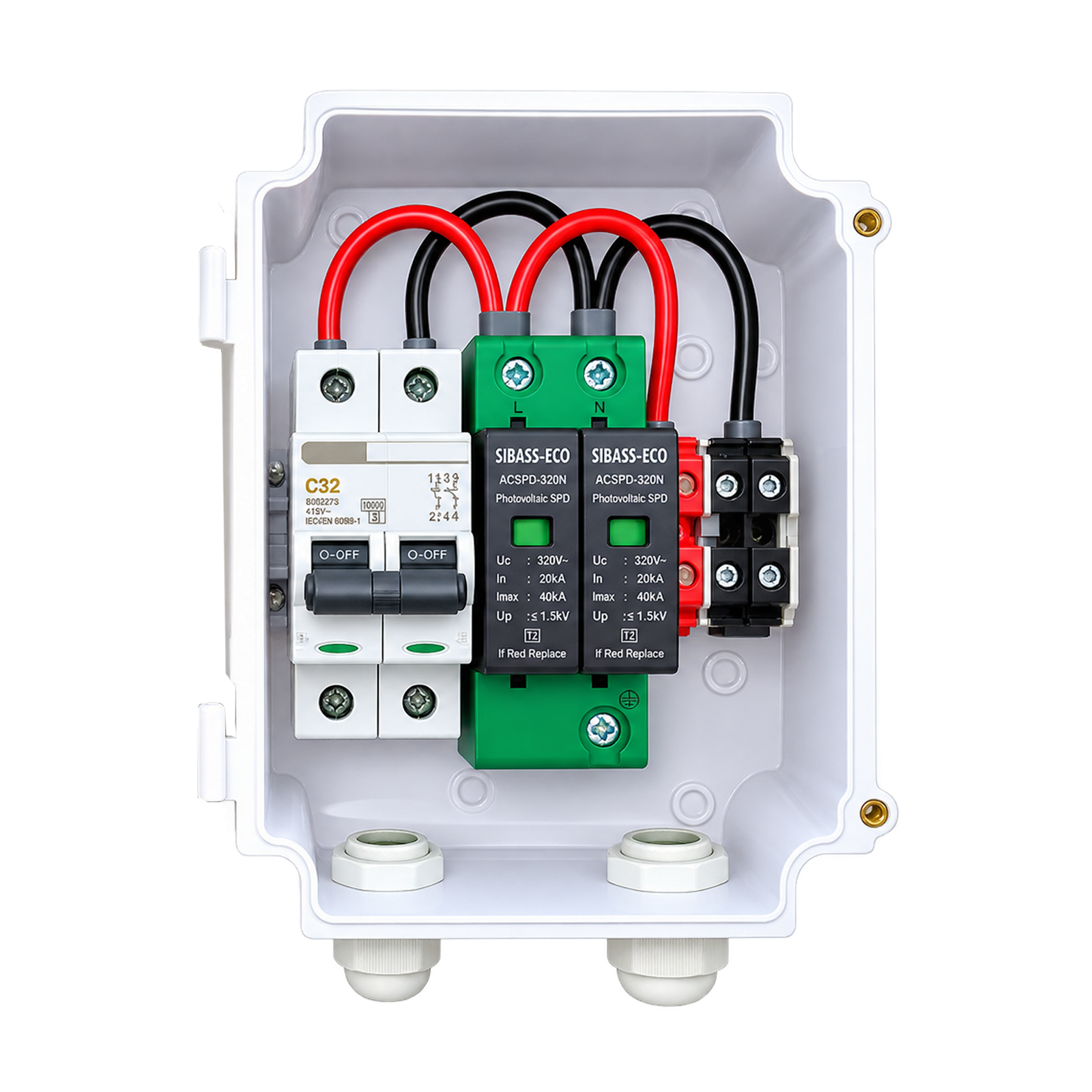

AC Distribution & Protection Box
ACDB BOX
AC Distribution & Protection Box
The ACDB (AC Distribution Box) sits between the solar inverter’s AC output and the main distribution board. It houses the AC MCB (Miniature Circuit Breaker), AC SPD (Surge Protection Device), and output terminals, providing the first line of overcurrent and overvoltage protection on the AC side. Vidyut Renewables manufactures ACDB boxes in-house, allowing us to tailor the component rating to each inverter’s exact output capacity.
|
Specifications
|
|
|---|---|
|
Manufacturer
|
Viidyut Renewables
|
|
Enclosure
|
IP65 Weatherproof ABS / MS
|
|
AC MCB Rating
|
Matched to inverter output
|
|
SPD
|
Class II AC Surge Protection Device
|
|
Busbar
|
Tinned Copper Busbar
|
|
Applications
|
Single Phase & Three Phase Systems
|
Features
- In-house manufactured, custom rated for every inverter model

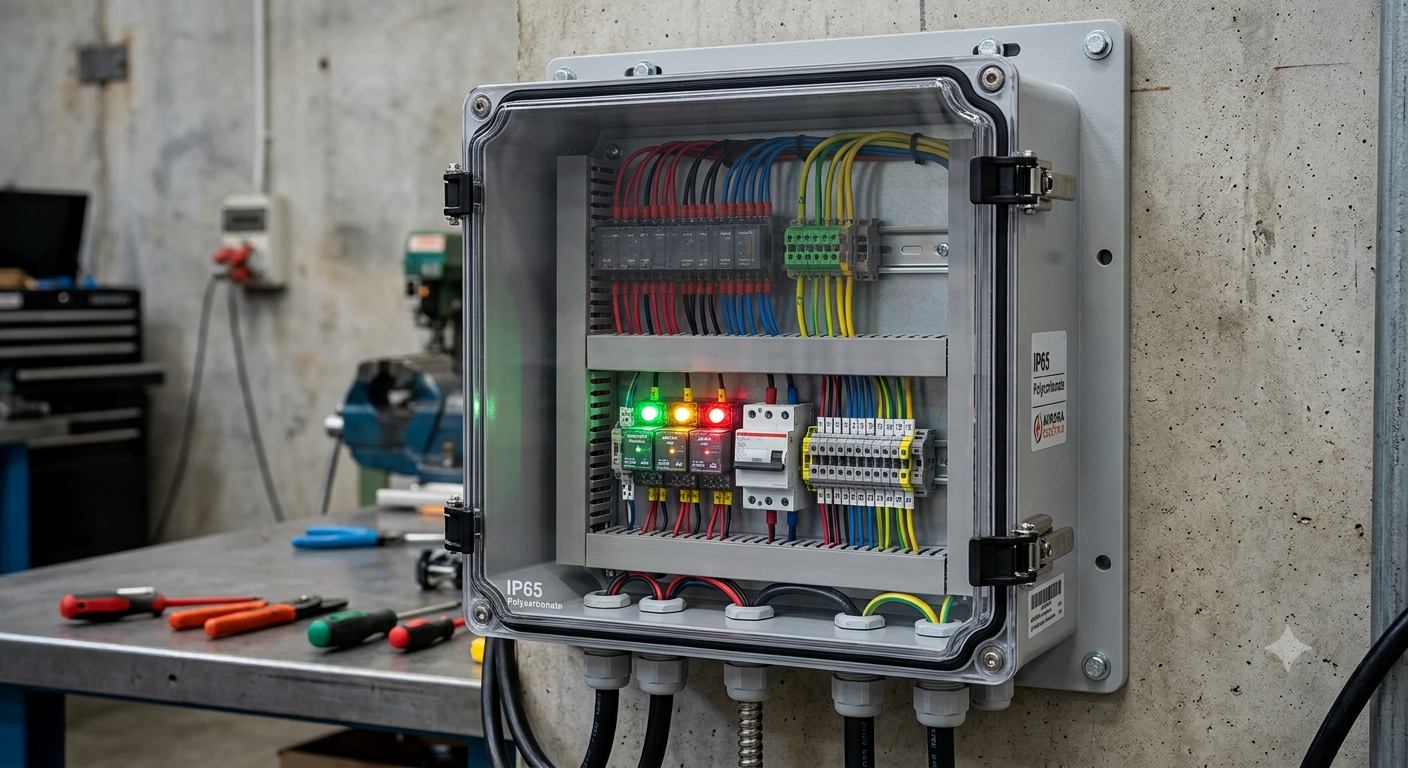

- IP65 weatherproof enclosure for rooftop and outdoor installation
- Class II AC SPD guards against lightning-induced surges
- AC MCB for overcurrent and short-circuit protection
- Clearly labelled terminals for safe commissioning and maintenance
- Cable glands included for weatherproof cable entry
DC Side Protection

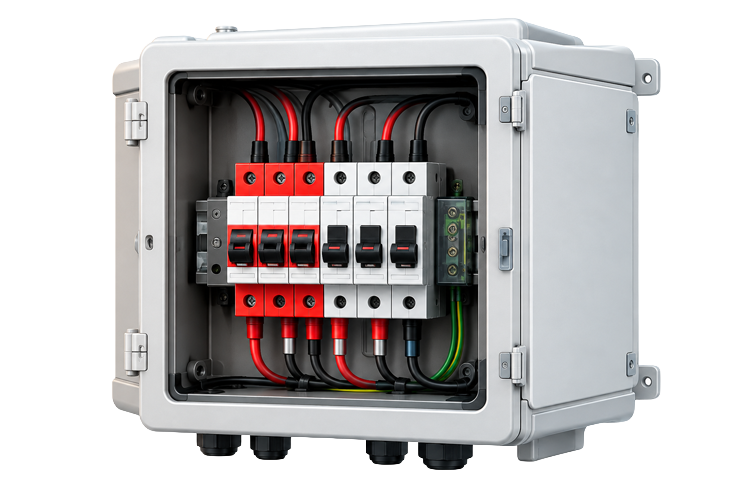

ACDB BOX

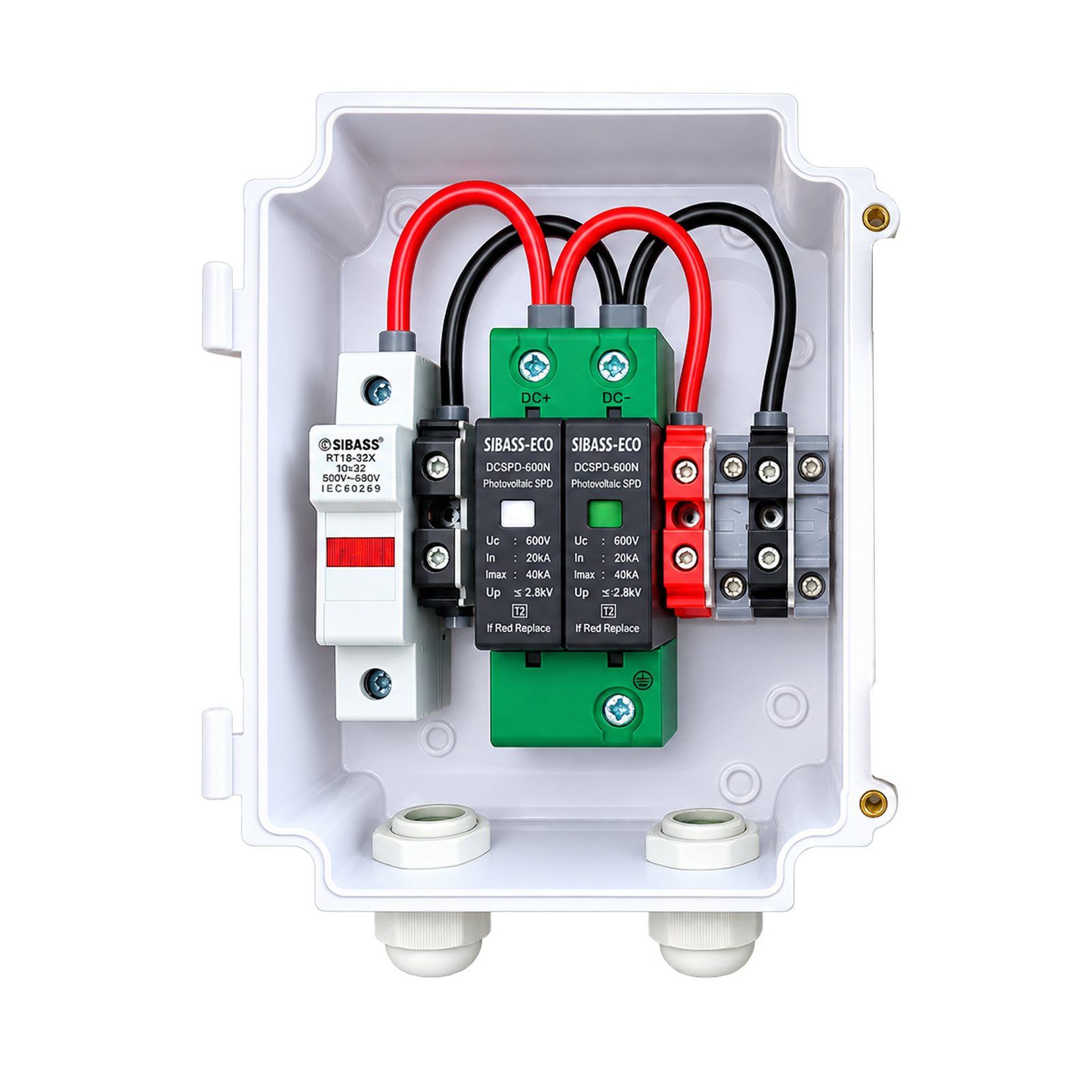

AC Distribution & Protection Box
ACDB BOX
AC Distribution & Protection Box
The DCDB (DC Distribution Box) sits between the solar panel strings and the inverter DC input. It consolidates multiple panel strings, provides individual fuse protection for each string, and houses the DC SPD (Surge Protection Device) that shields the inverter from lightning strikes and switching transients. Like our ACDB, the Vidyut Renewables DCDB is manufactured in-house, with fuse ratings matched to the panel string short-circuit current of each specific project.
|
Specifications
|
|
|---|---|
|
Manufacturer
|
Viidyut Renewables
|
|
String Fuses
|
Matched to panel Isc × 1.25
|
|
AC MCB Rating
|
Matched to inverter output
|
|

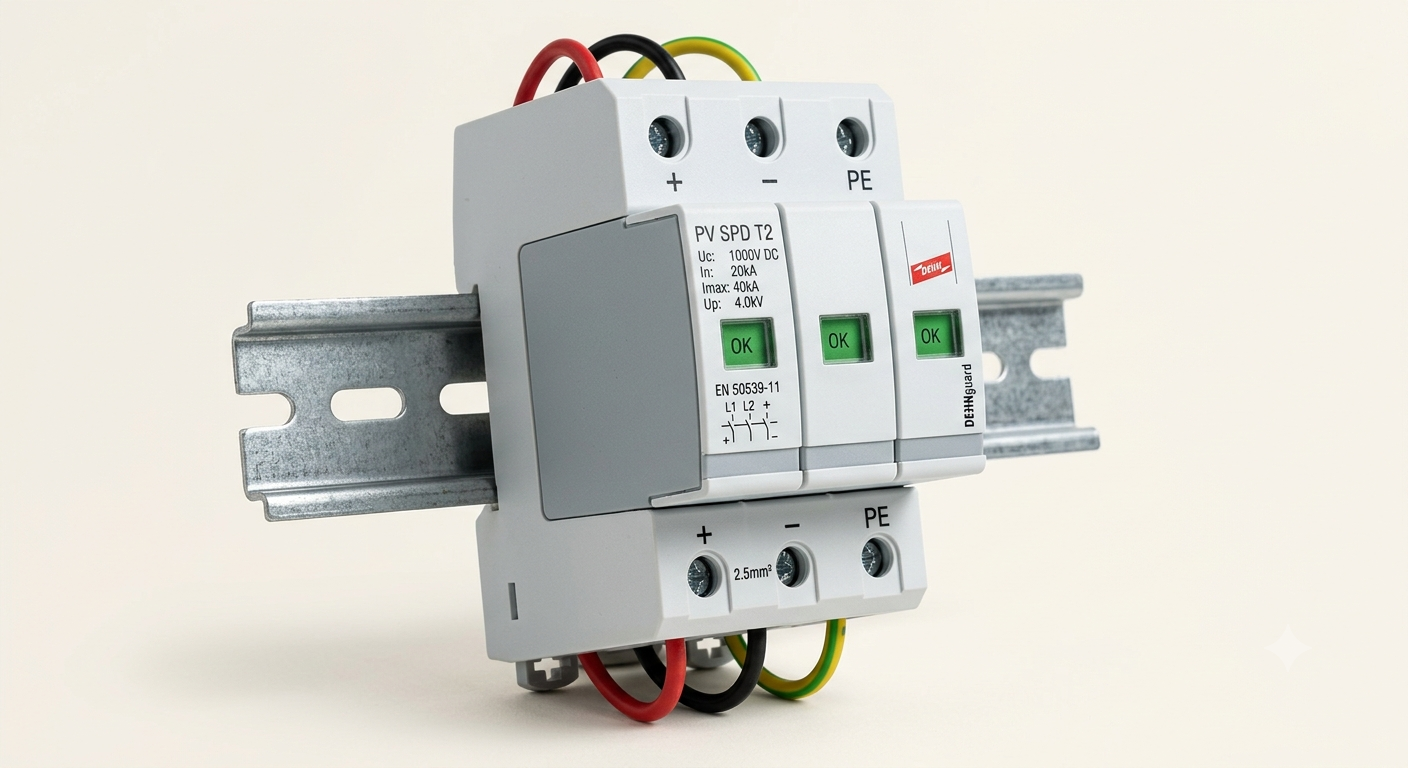

SPD
|

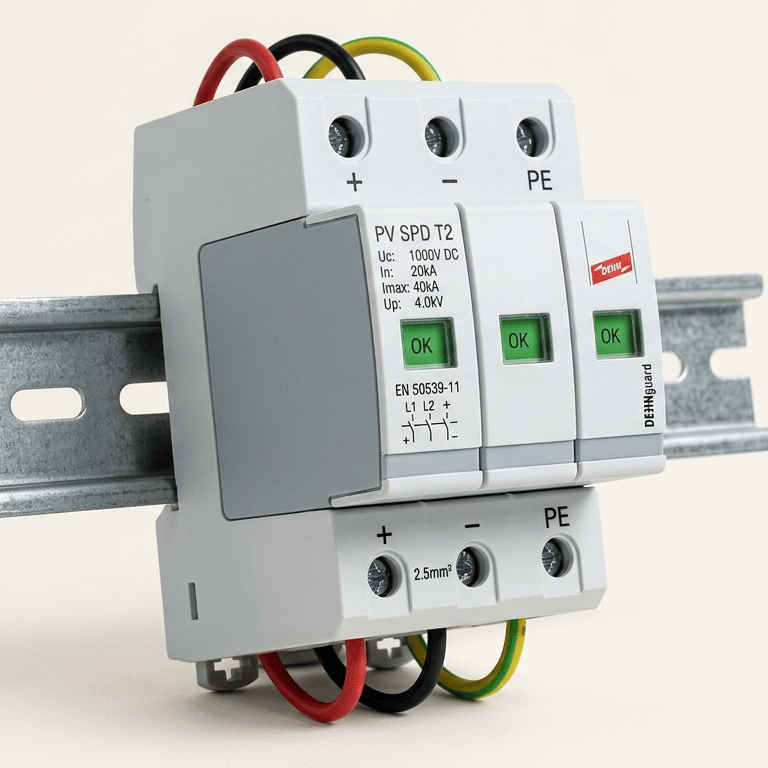

Class II DC Surge Protection Device
|
|
DC Voltage Rating
|
Up to 1000V / 1500V DC
|
|
String Inputs
|
2 to 8 strings (project specific)
|
Features
- In-house manufactured, custom string count and fuse ratings per project

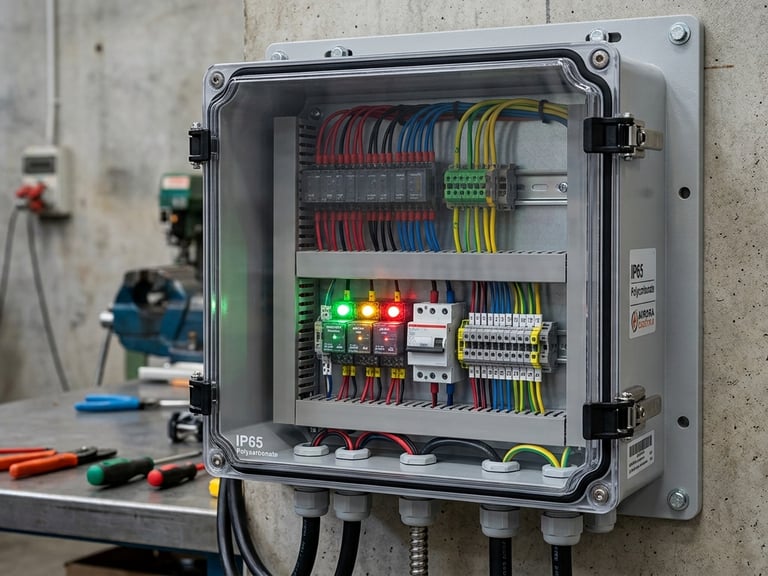

- IP65 weatherproof enclosure suitable for rooftop mounting
- Individual string fuses prevent one faulty string from affecting others
- Class II DC SPD absorbs lightning transients before they reach the inverter
- DC disconnect switch for safe maintenance isolation
- Labelled string inputs for fast fault identification
